Water Exchanger DIN CuZn36 Seamless Copper Tube

Name: Water Exchanger DIN CuZn36 Seamless Copper Tube
Brand: FRANK STEEL
Price: 1 USD

Wholesale Water Exchanger DIN CuZn36 Seamless Copper Tube from china suppliers

Brand Name : FRANK STEEL

Model Number : DIN CuZn36

Certification : DNV / LR / BV/ SGS

Place of Origin : P.R.CHINA

MOQ : 1 Tons or negotiation

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 1000 Ton per 30 days

Delivery Time : about 30 work days

Packaging Details : plywooden boxes for exporting

Impurity content : ≤0.15%

Softening temperature : 900～1050℃

Grade : DIN CuZn36

Length : Negotiation ≤12M

3rd Party : Supported BV SGS

Package : Plywood wooden box for export

Contact Now

DIN CuZn36 Common Brass Seamless Tubes For Water Exchanger And Oil Lubricating Pipe
1. Description

DIN CuZn36 brass seamless pipe has good malleability and high strength. It has good machinability and is easy to cut and weld. It is very stable to general corrosion at normal temperature, and the change of air humidity and temperature has little effect on it. Its long service life makes it used in many industries. It is the most widely used common brass variety.
The strength of din-cuzn36 seamless copper tube is higher than that of copper tube. It has good conductivity and thermal conductivity, and has high corrosion resistance in atmosphere and fresh water. And good malleability , easy to hot and cold pressure processing, easy welding, forging, tin plating, no stress corrosion cracking tendency. It is usually used in oil pressure system, such as lubrication system. It is also widely used in bathroom and shower room.

2. Chemical composition

Cu :64.0～68.0

Zn:Remain

Pb:≤0．05

P:≤0．01

Fe:≤0．05

Sb :≤0．005

Bi:≤0.002

Impurity:≤0.3

3. Mechanical properties

Tensile strength: (σ B / MPA): ≥ 440

Elongation: (δ 10 /%) ≥ 25

Elongation: (δ 5 /%) ≥ 30

C26800 Brass Longitudinal Elastic Coefficient kgf / mm2:10500

4. Standard comparison

Category	China	US		UK	Germany	Japan
Category	GB	ASTM	CDA	BS	DIN	Digital system	JIS
Common Brass	H65	C26800	268	Cz107	CuZn36	2.0335	C2680

5. OD table and tolerance

T mm OD mm	0.15--0.2	0.2--0.3	0.3--0.5	0.5--0.8	0.8--1.2	1.2--1.8	1.8--2.5	2.5--3	3--4
2.5--5	√	√	√
6--10	√	√	√	√	√
11--15		√	√	√	√	√
16--20			√	√	√	√
20--25			√	√	√	√	√
25--35			√	√	√	√	√
35--45			√	√	√	√	√	√
45--55				√	√	√	√	√	√

outside diameter	Average tolerance
outside diameter	General (±mm)	high(±mm)
3--15	0.09	0.05
15--25	0.1	0.06
25--50	0.15	0.08

6. Wall Thicknese and tolerance

wall thickness	Average tolerance
wall thickness	General(mm)	high(mm)
0.2--0.5	±0.02--0.05	±0.01--0.03
0.5--0.8	±0.05--0.08	±0.02--0.05
0.8--1.5	±0.08--0.15	±0.05--0.12
1.5--2.5	±0.15--0.25	±0.12--0.2
2.5--4	±0.25--4	±0.2--0.3

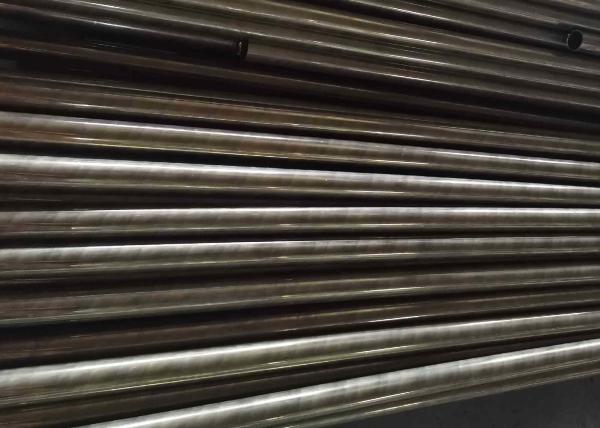

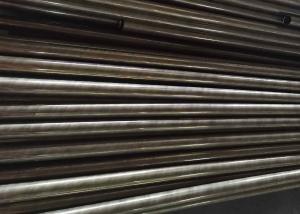

7. Details picture
Water Exchanger DIN CuZn36 Seamless Copper Tube
